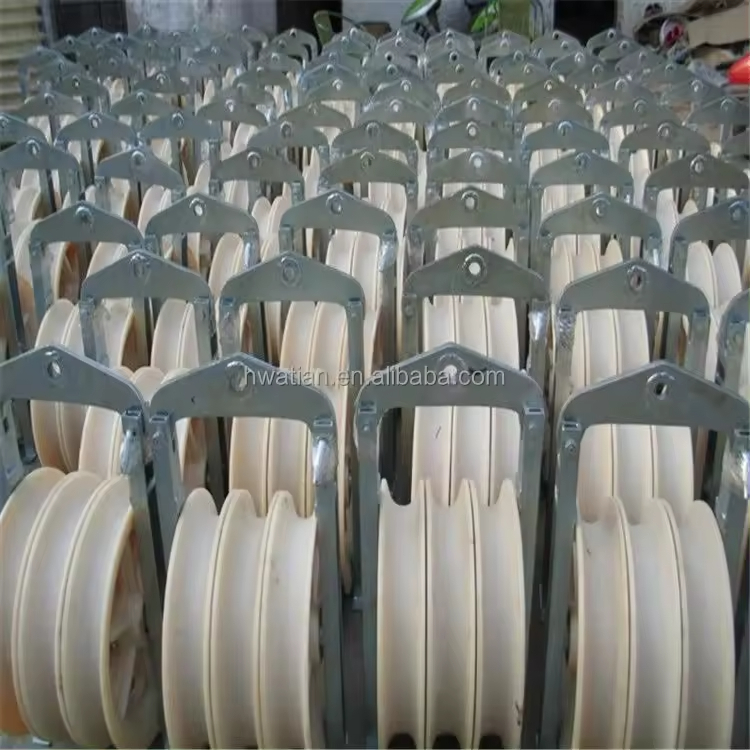

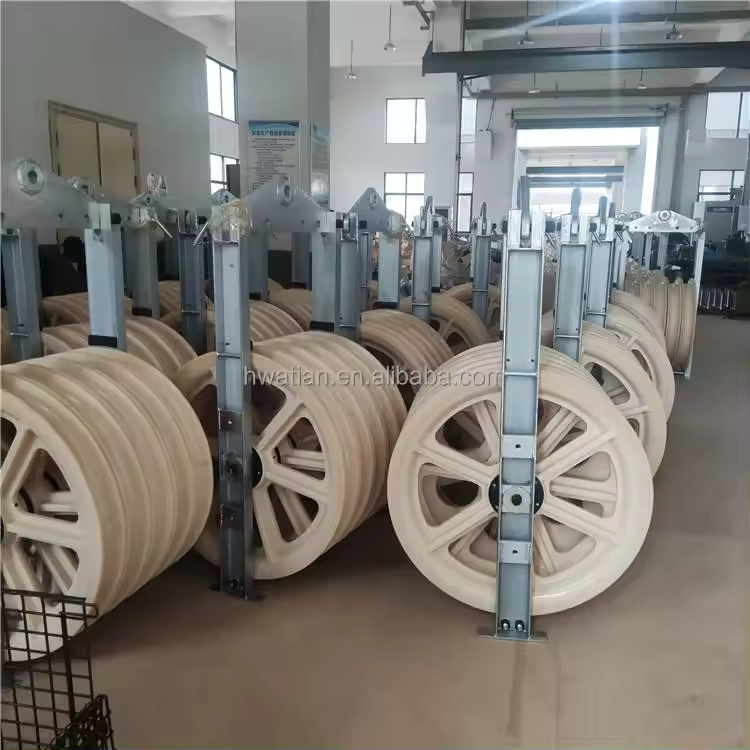

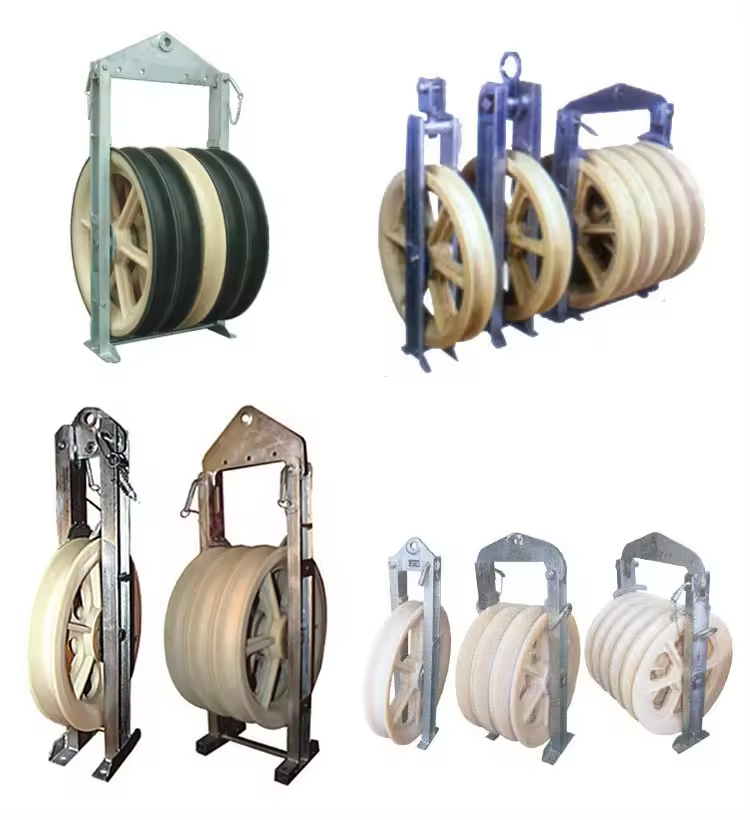

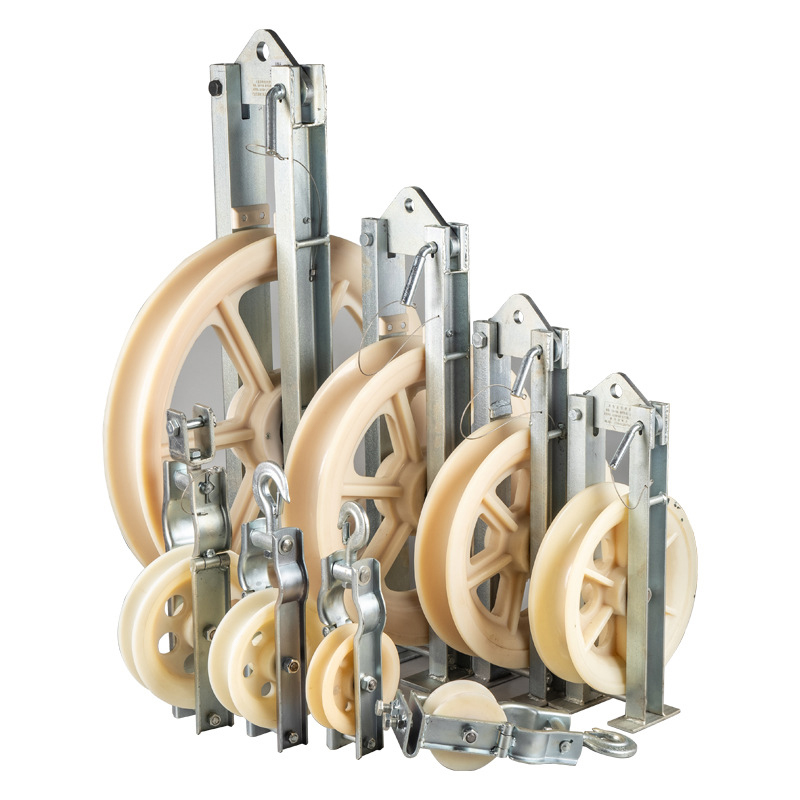

Stringing Block
Features:
1. used for spreading wires in overhead transmission lines
2. can be used for single split wires, double split wires, four split wires, six split wires, ect.
3. sheave diameter have 580mm, 660mm, 822mm, 926mm, 1160mm
4. sheave material have MC nylon and rubber lined aluminium
5. for multi-wheel pulley, middle wheel can be cast steel wheel or MC nylon wheel
Product Category
Related products
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
Specification
Remark: support rubber lined aluminum shave also
| Model | Sheave No. | Rated Capacity (kN) | Groove Dia. (mm) | Outter Dia. (mm) | Sheave Width (mm) | Weight (kg) |
| SHD-1N-508 | 1 | 20 | 408 | 508 | 75 or 100 | 16 |
| SHD-3N-508 | 3 | 40 | 408 | 508 | 75 or 100 | 38 |
| SHD-5N-508 | 5 | 60 | 408 | 508 | 100 | 70 |
| SHD-1N-660 | 1 | 20 | 560 | 660 | 100 | 26 |
| SHD-3N-660 | 3 | 40 | 560 | 660 | 100 | 70 |
| SHD-5N-660 | 5 | 60 | 560 | 660 | 100 | 110 |
| SHD-1N-822 | 1 | 30 | 710 | 822 | 110 | 40 |
| SHD-3N-822 | 3 | 60 | 710 | 822 | 110 | 118 |
| SHD-5N-822 | 5 | 120 | 710 | 822 | 110 | 170 |
| SHD-1N-916 | 1 | 50 | 800 | 916 | 110 or 125 | 51 |
| SHD-3N-916 | 3 | 75 | 800 | 916 | 110 or 125 | 120 |
| SHD-5N-916 | 5 | 150 | 800 | 916 | 110 or 125 | 200 |
| SHD-1N-1160 | 1 | 60 | 1000 | 1160 | 150 | 65 |
| SHD-3N-1160 | 3 | 120 | 1000 | 1160 | 150 | 220 |
