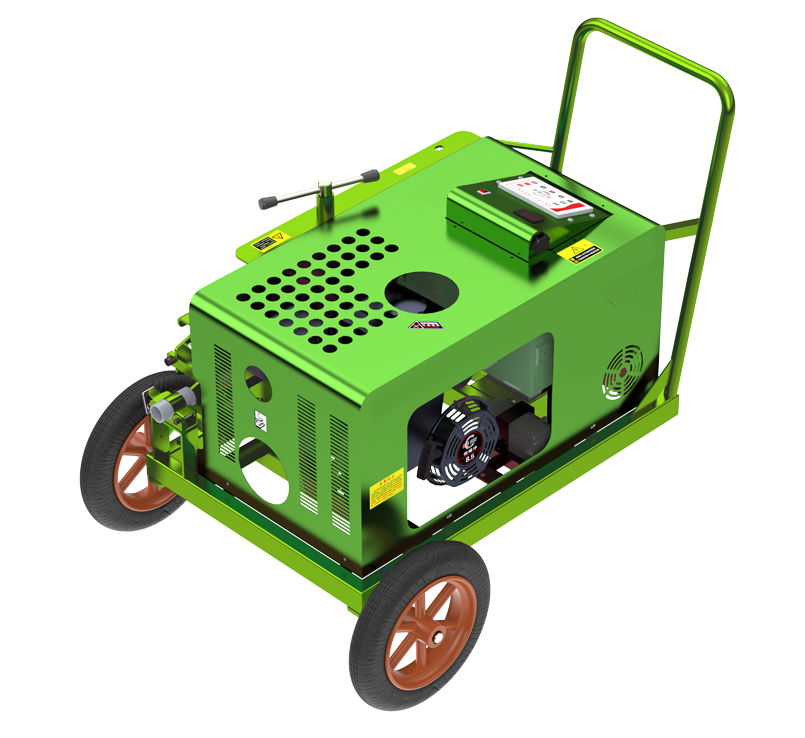

Optic Fiber Cable Puller Machine

Small volume and weight, easy for moving
1pc machine equal to 4-5 people labor, save labor cost and improve efficiency
Built-in transmission device to eansure safety
Track or belt transmission, adjustable preload, suitable for different diameter cable, even force & without damage cables
Support gasoline engine and diesel engine and electric motor
Wide speed range 0-80m/min
Manual and Self-moving two version support

Specification

Model	Optic fiber Cable Puller 1	Optic fiber Cable Puller 3	Optic fiber Cable Puller 5	Optic fiber Cable Puller 7	Optic fiber Cable Puller 9
Output Capacity	3kN	3kN	4.2kN	4.2kN	4.2kN
Speed	0-80m/min
Speed Control	4 level		4 level + stepless various speed
Control Way	manual gear shift		button control	button control + remote controller
Power	Gasoline Engine Manual pull starter	Gasoline Engine Manual pull +Electric starter	Gasoline Engine Manual pull starter	Gasoline Engine Manual pull +Electric starter	Diesel Engine
Machine Walking Way	Hand-push walking
Transsmission Way	crawler lane
Maximum track opening	4cm		5cm
Suitable Cable	4-288core
Diemention	91x60x80cm	91x60x80cm	95x60x80cm	103×79.4x80cm	97x78x80cm
Weight	90kg	90kg	95kg	115kg	97kg
Package	Export wooden box
