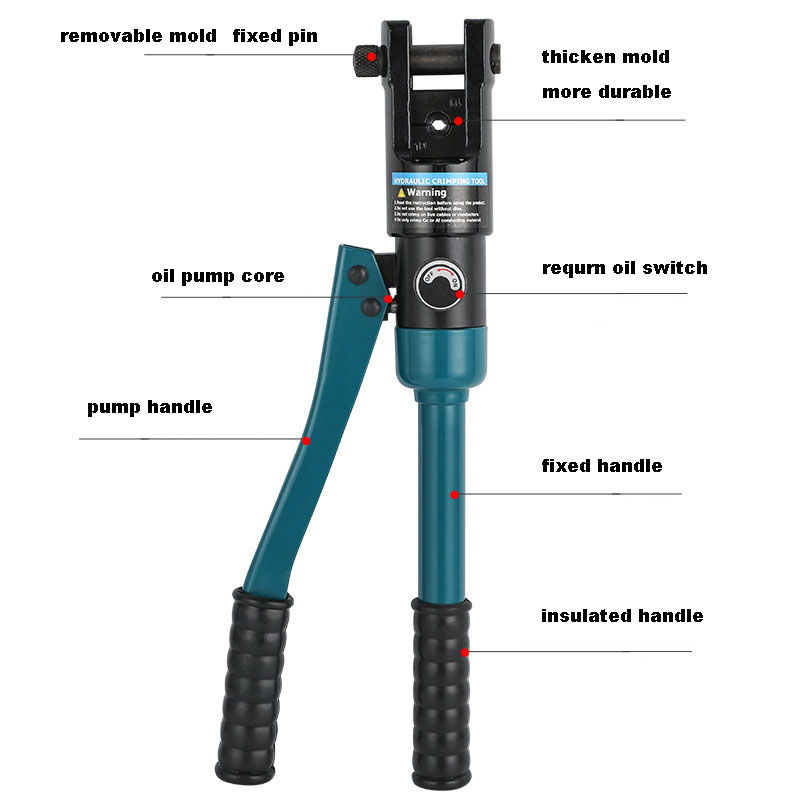

Manual Crimping Tool
Features:
Hydraulic Power: Uses hydraulic pressure to create strong crimps, ideal for thick cables, ensuring secure connections.
Wide Crimping Range: Comes with interchangeable dies for different cable sizes, usually ranging from 10mm² to 300mm².
Durable Construction: Made from high-strength steel, ensuring durability for frequent use.
Easy to Use: The handle design makes it easy to operate, and the hydraulic system reduces the effort needed compared to manual crimpers.
Interchangeable Dies: Includes various dies that can be swapped out to fit different crimping needs.
Safety Features: Equipped with safety valves to prevent over-crimping, protecting the tool and connectors.

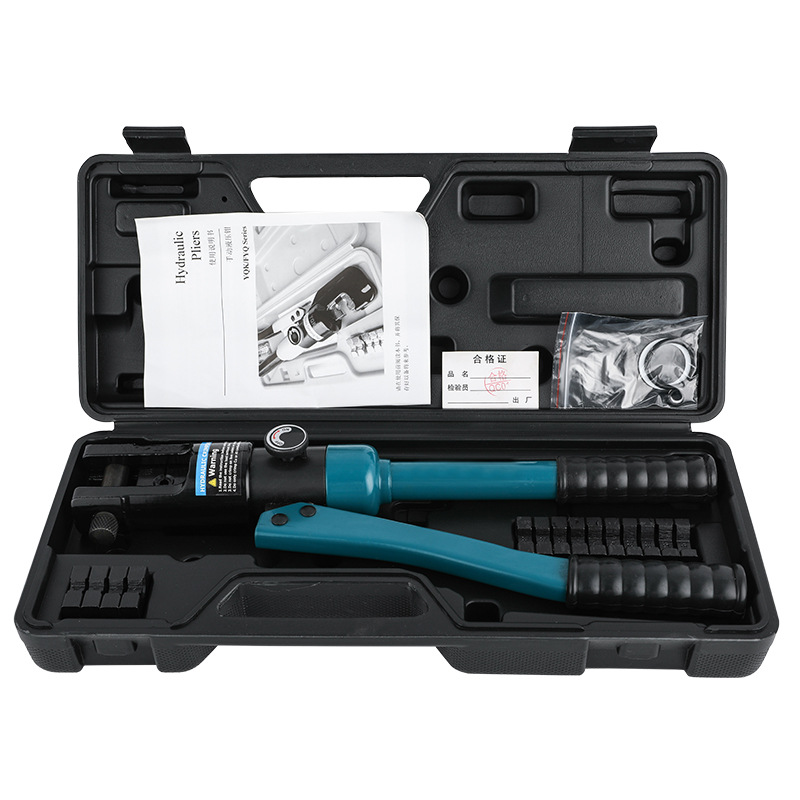

Portable Design: Often comes with a carrying case for easy transport and storage.
Product Category
Related products
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
| Item no: | YQK-70 | YQK-120 | YQK-240 | YQK-300 |
| Crimping range: | cu 4-70mm2 | cu 10-120mm2 | cu 16-240mm2 | cu 10-300mm2 |
| Crimping force: | 60kn | 80kn | 70kn | 100kn |

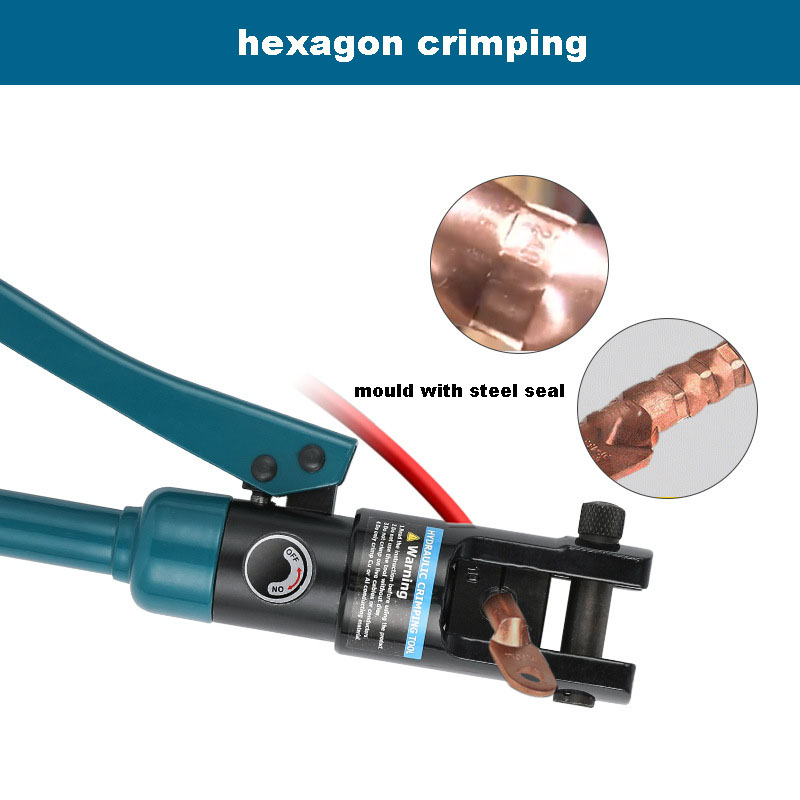

| Crimping type: | hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping |
| Stroke: | 10mm | 12mm | 18mm | 17mm |
| Length: | apporx.310mm | apporx.390mm | apporx.450mm | apporx.460mm |
| Net Weight: | apporx.1.8kg | apporx.2.85kg | apporx.3kg | apporx.4.0kg |
| Gross Weight: | apporx.3.0kg | apporx.4.5kg | apporx.1.1kg | apporx.7.0kg |
| Crimping dies: | 4,6,8,10,16,25,35,50,70mm² | 10,16,25,35,50,70,95,120mm² | 16,25,35,50,70,95,120,150,185,240mm² | 16,25,35,50,70,95,120,150,185,240,300mm² |
