Hydraulic Crimping Tool

Features:

Hydraulic Power: Uses hydraulic pressure to create strong crimps, ideal for thick cables, ensuring secure connections.
Wide Crimping Range: Comes with interchangeable dies for different cable sizes, usually ranging from 10mm² to 300mm².
Durable Construction: Made from high-strength steel, ensuring durability for frequent use.
Easy to Use: The handle design makes it easy to operate, and the hydraulic system reduces the effort needed compared to manual crimpers.

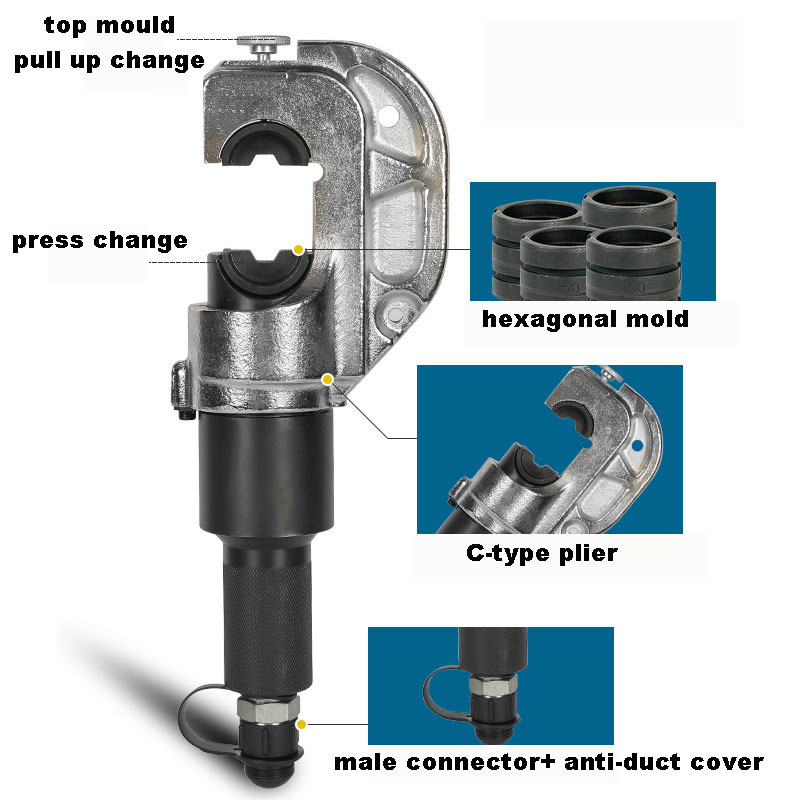

Interchangeable Dies: Includes various dies that can be swapped out to fit different crimping needs.
Safety Features: Equipped with safety valves to prevent over-crimping, protecting the tool and connectors.

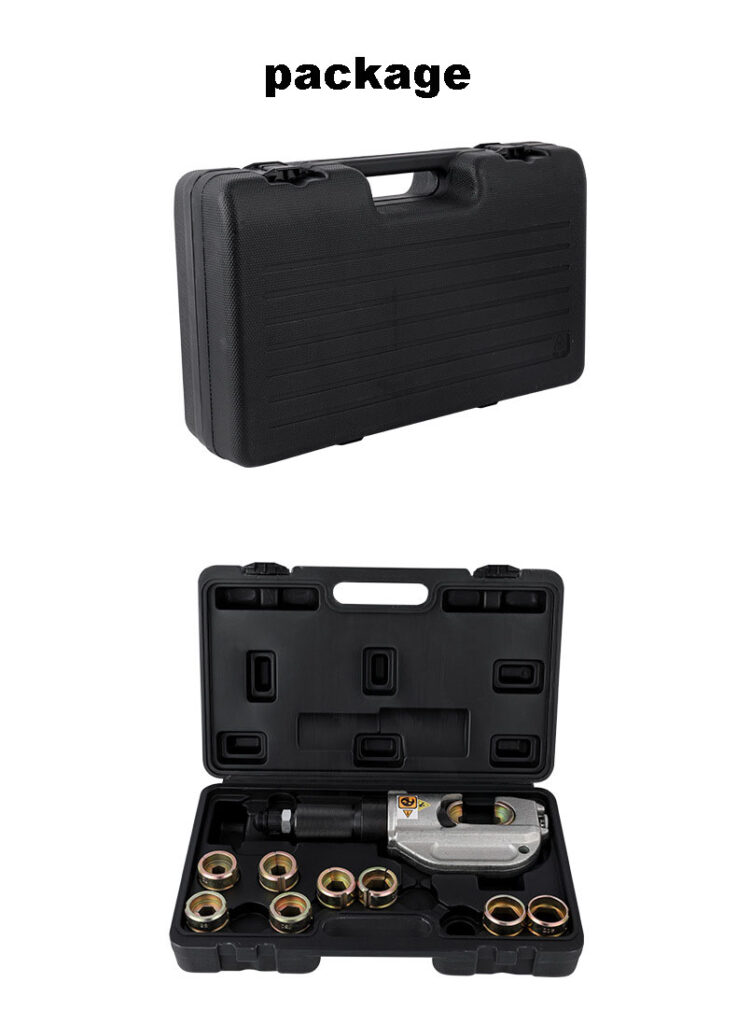

Portable Design: Often comes with a carrying case for easy transport and storage.

Specification:

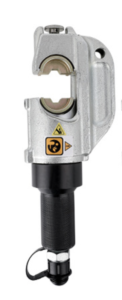

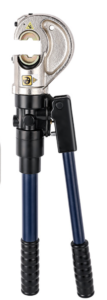

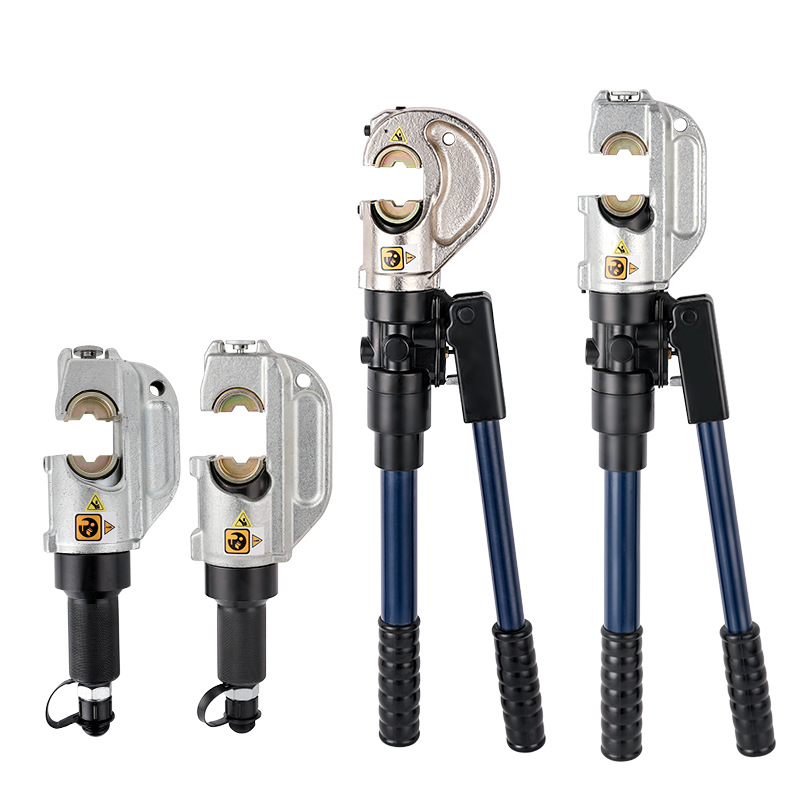

Item no:	EP-410 Split-up	EP-430 Split-up	EP-510 Split-up	EP-410 One-piece	EP-430 One-piece	EP-510 One-piece
Photo:
Crimping range:	cu 35-300mm²	cu 50-400mm²	cu 50-400mm²	cu 35-300mm²	cu 50-400mm²	cu 50-400mm²
Crimping force:	120kn	120kn	130kn	120kn	120kn	130kn
Open distance:	32mm	32mm	38mm	32mm	32mm	38mm
Crimping type:	hexagon crimping	hexagon crimping	hexagon crimping	hexagon crimping	hexagon crimping	hexagon crimping
Weight	4.3kg	5.0kg	5.8kg	4.3kg	5.0kg	5.8kg
Crimping dies:	35,50,70,95,120, 150,185,240, 300mm²	50,70,95,120, 150,185, 240, 300,400mm²	50,70,95,120, 150,185, 240, 300,400mm²	35,50,70,95,120, 150,185, 240,300mm²	50,70,95,120, 150,185, 240, 300,400mm²	50,70,95,120, 150,185, 240, 300,400mm²
Hydraulic Oil	N/A	N/A	N/A	R32 lubricating oil 145cc	R32 lubricating oil 145cc	R32 lubricating oil 145cc

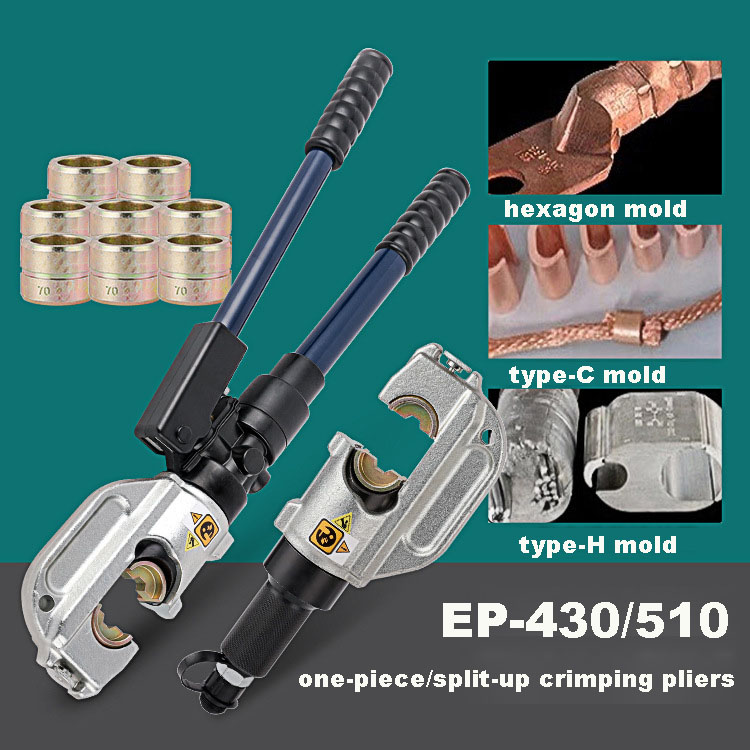

Optional dies:	C-type mold	C-type mold	C-type mold and H-type mold	C-type mold	C-type mold	C-type mold and H-type mold
Recommend Pump	CP-180 or CP-700 or electric pump	CP-180 or CP-700 or electric pump	CP-180 or CP-700 or electric pump	N/A	N/A	N/A
