Hydraulic Cable Cutter Head

Features：

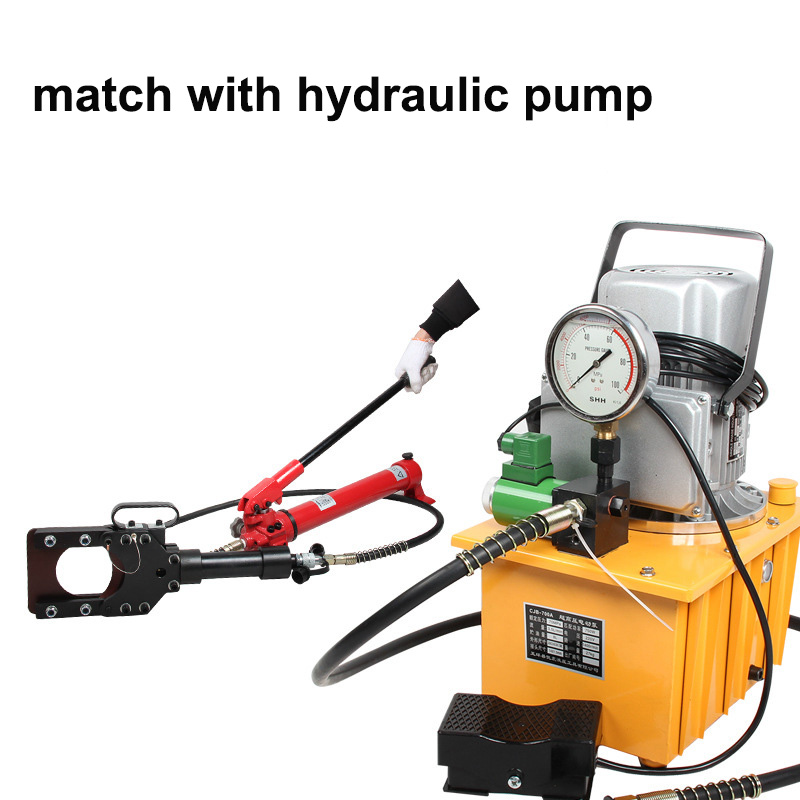

Powerful Hydraulic Drive
High-pressure hydraulic system easily slices through large-section copper/aluminum cables

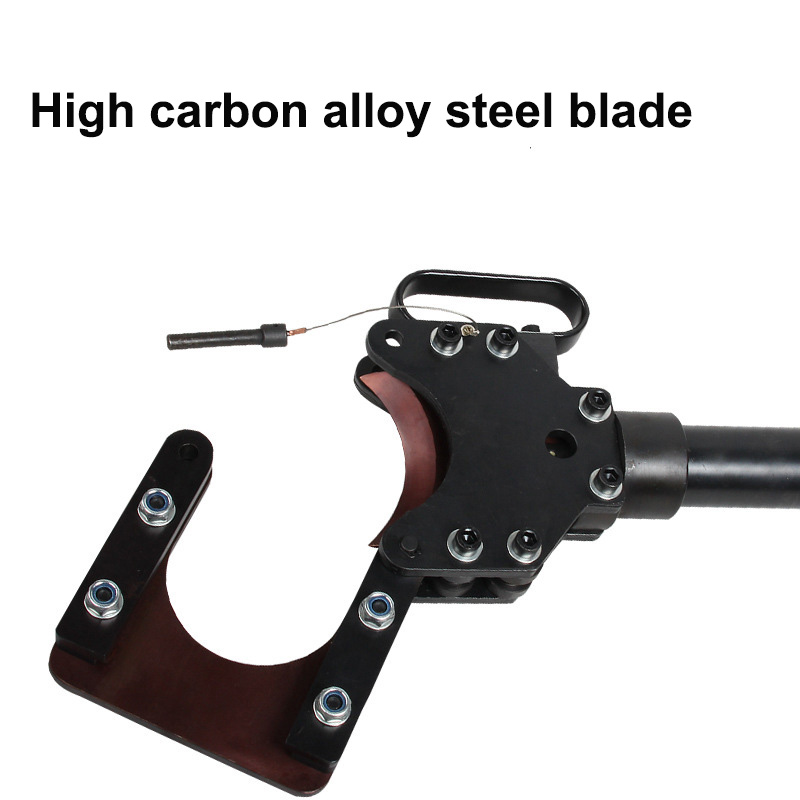

Reinforced Blade Design
Specially heat-treated alloy steel blades maintain long-term sharpness and durability
Safe & Efficient Operation
Remote control ensures safe distance, completes cuts within 10 seconds
Ergonomic Engineering
Modular structure with quick-connect, 360° rotating head adapts to various angles
Wide Compatibility
Suitable for 10-1000mm² power cables, compatible with different blade options

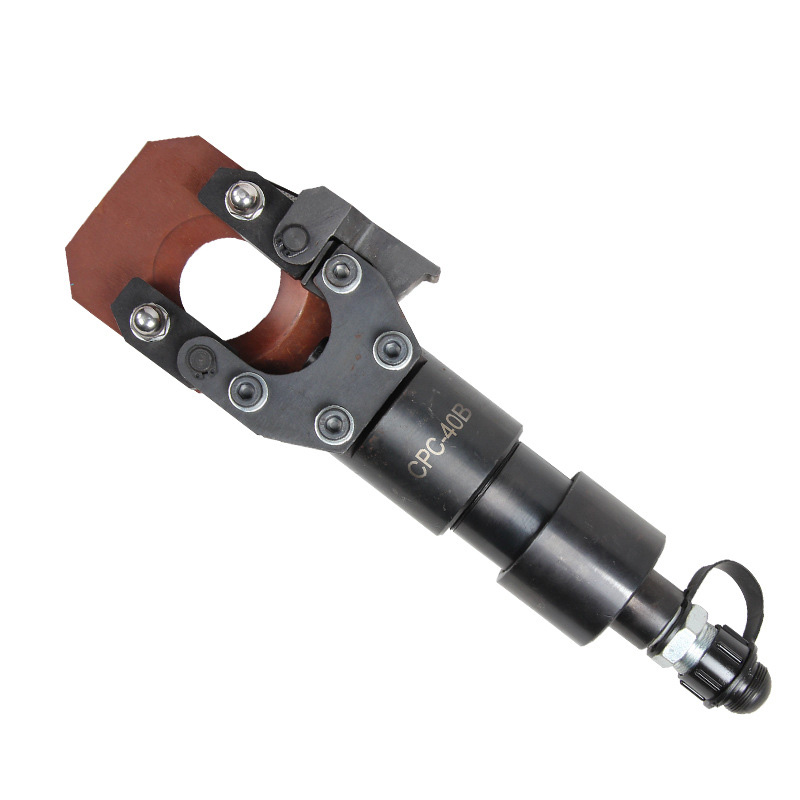

Item no	CPC-20B	CPC-40B	CPC-50B	CPC-85B	CPC-100B	CPC-130A	CPC-160F	CPC-185
Cutting force	55kN	80kN	80kN	80kN	80kN	80kN	180kN	250kN
Cutting range	wire rope φ13mm max steel strand φ12mm max ACSR φ20mm max armored CU/AI cable φ20mm max	wire rope φ18mm max steel strand φ16mm max ACSR φ40mm max armored CU/AI cable φ40mm max	wire rope φ18mm max steel strand φ16mm max ACSR φ50mm max armored CU/AI cable φ50mm max	armored CU/AI cable φ85mm max	armored CU/AI cable φ100mm max	armored CU/AI cable φ130mm max	armored CU/AI cable φ160mm max	armored CU/AI cable φ185mm max
Stroke	20mm	40mm	50mm	85mm	100mm	130mm	160mm	185mm
Length	apporx.150mm	apporx.330mm	apporx.340mm	apporx.410mm	apporx.550mm	apporx.650mm	apporx.810mm	apporx.870mm
Net Weight	apporx.2.0kg	apporx.3.95kg	apporx.4.7kg	apporx.5.0kg	apporx.10.3kg	apporx.13.3kg	apporx.23.5kg	apporx.41.0kg
Gross Weight	apporx.4.0kg	apporx.6.0kg	apporx.6.7kg	apporx.7.0kg	apporx.12.3kg	apporx.16.5kg	apporx.25.0kg	apporx.43.0kg
Package	paper box	plastic box	plastic box	Honeycomb cardboard box	Honeycomb cardboard box	Honeycomb cardboard box	wooden case	wooden case
