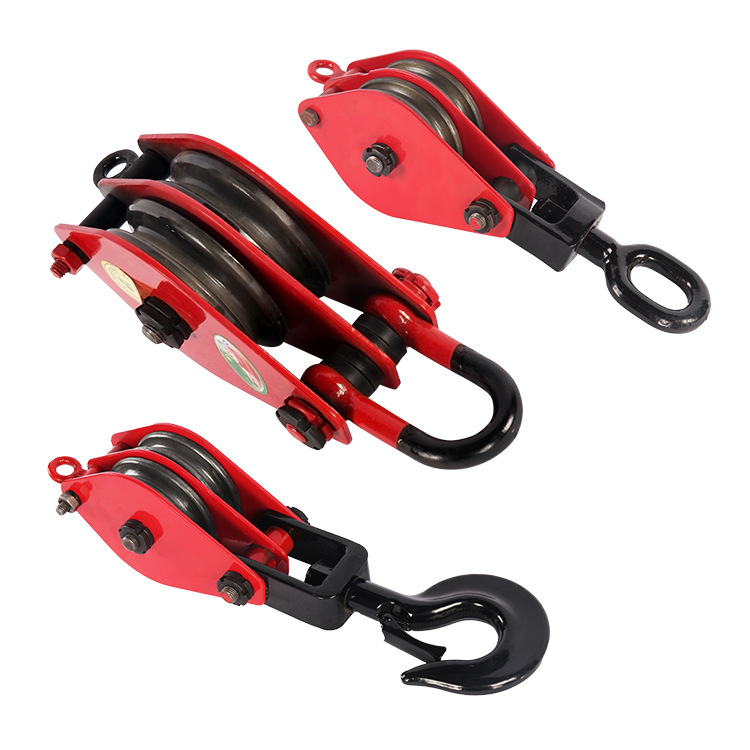

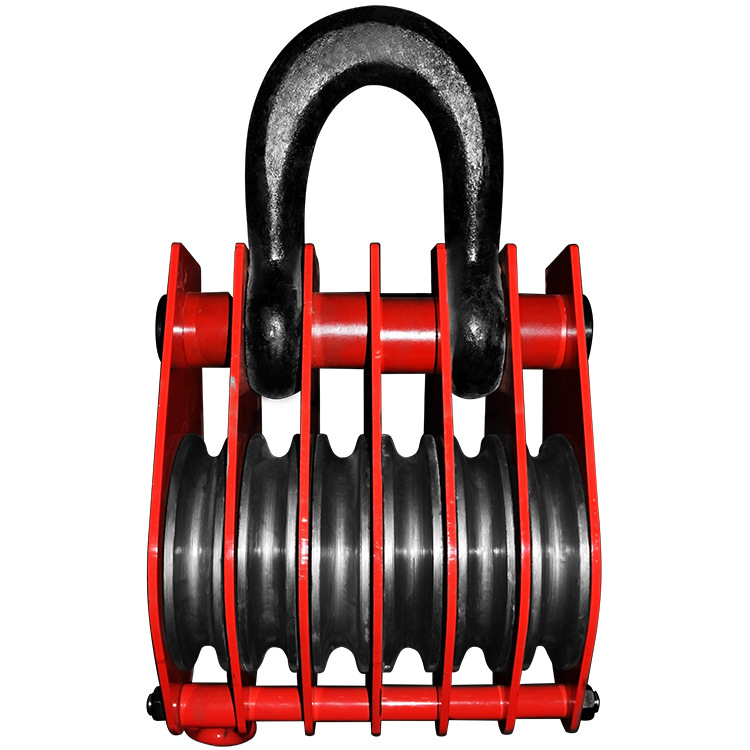

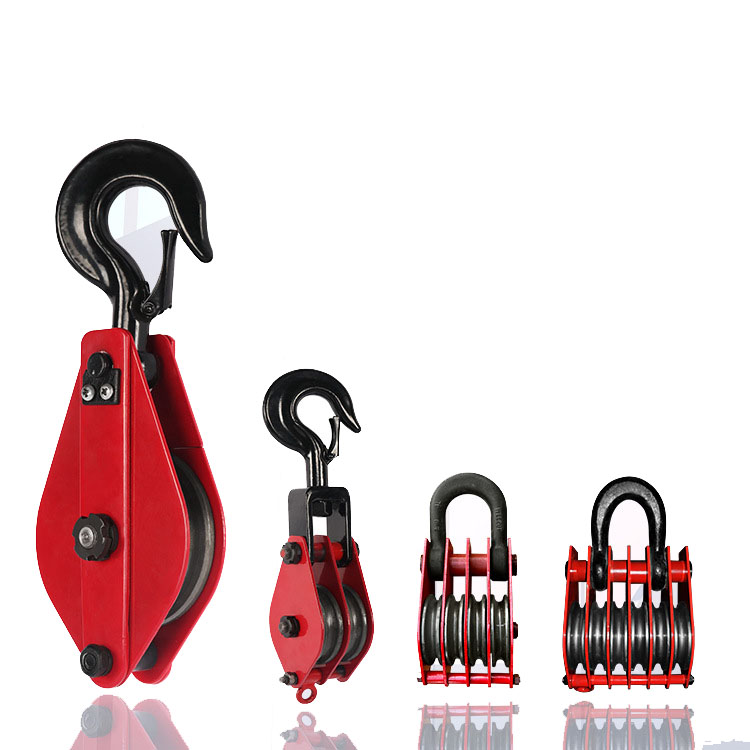

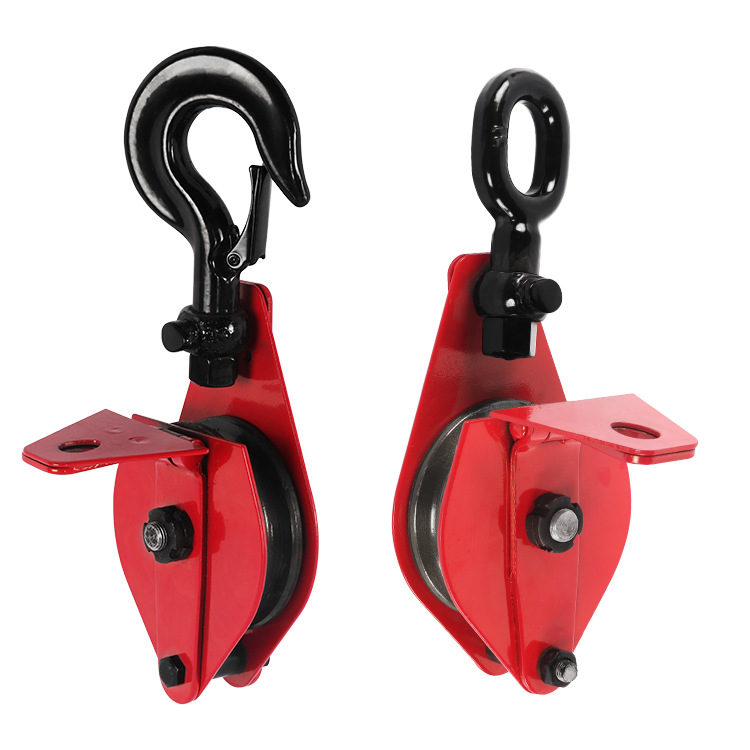

Hoisting Tackle(Casting Steel Sheave)
Features:
1. one-piece casting carbon steel material
2. snach hook, not falling down
3. hook 360deg rotation
4. side plate can openning, easy for wire rope in and out
5. widly application like construction working side, crane, winch, hoist lifting use
Product Category
Related products
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
Specification:
| Model | Sheave No. | Rated Capacity (kN) | Max. Rope Dia. (mm) | Weight (KG) |
| HC1-1 | 1 | 10 | φ7.7 | 3.0 |
| HC1-2 | 2 | φ5.7 | 3.0 | |
| HC1-3 | 3 | φ5.7 | 4.3 | |
| HC2-1 | 1 | 20 | φ11 | 4.7 |
| HC2-2 | 2 | φ7.7 | 5.3 | |
| HC2-3 | 3 | φ7.7 | 7.2 | |
| HC3-1 | 1 | 30 | φ12.5 | 6.5 |
| HC3-2 | 2 | φ11 | 7.8 | |
| HC3-3 | 3 | φ7.7 | 10.5 | |
| HC5-1 | 1 | 50 | φ15.5 | 9.0 |
| HC5-2 | 2 | φ12.5 | 10.8 | |
| HC5-3 | 3 | φ11 | 13.8 | |
| HC8-1 | 1 | 80 | φ18.5 | 14.4 |
| HC8-2 | 2 | φ15.5 | 19.0 | |
| HC8-3 | 3 | φ12.5 | 19.8 | |
| HC10-1 | 1 | 100 | φ20 | 21.0 |
| HC10-2 | 2 | φ18.5 | 24.0 | |
| HC10-3 | 3 | φ15.5 | 24.8 | |
| HC15-1 | 1 | 150 | φ21.5 | 41.0 |
| HC15-2 | 2 | φ18.5 | 33.0 | |
| HC15-3 | 3 | φ15.5 | 26.0 | |
| HC15-4 | 4 | φ12.5 | 28.0 |
support hook or ring at top
support customized capacity and sheave No.
