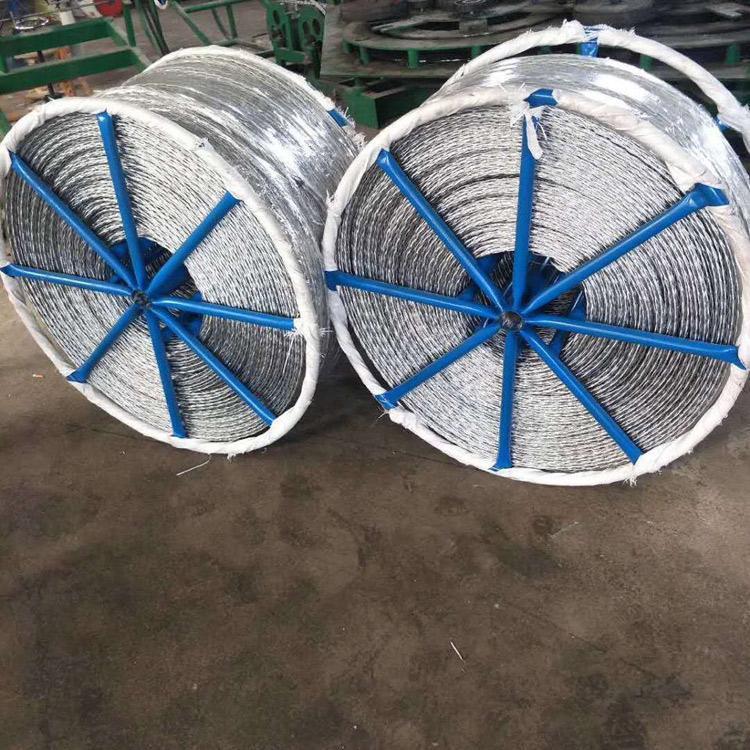

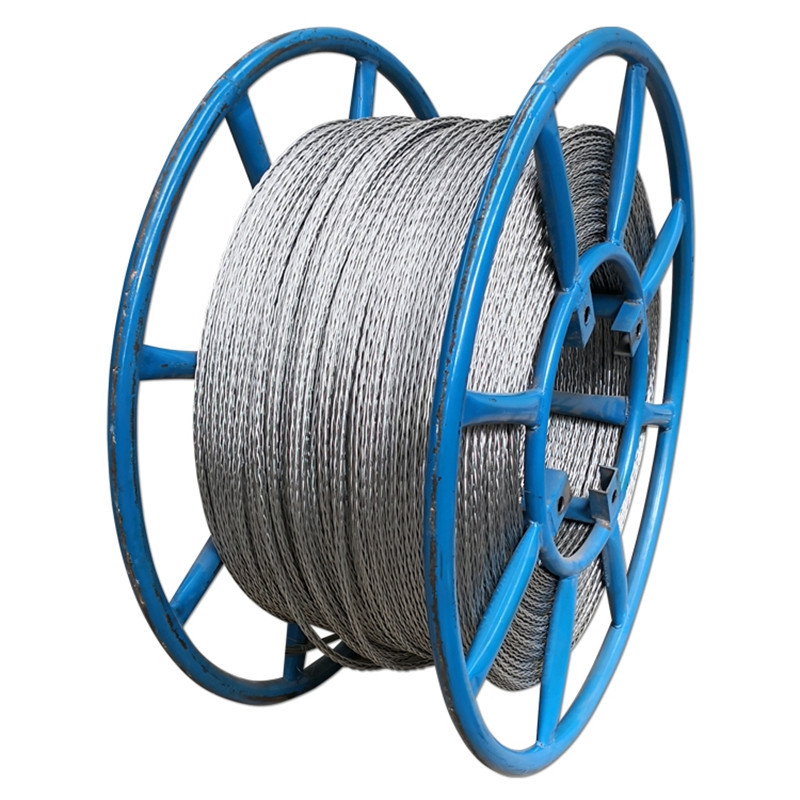

Anti-twist Wire Rope
Description:
- The special non-rotating / anti-twisting braided steel wire rope is widely used in power line stringing operations, for pulling conductors, OPGW cable, ADSS, 500kv traction rope, etc.

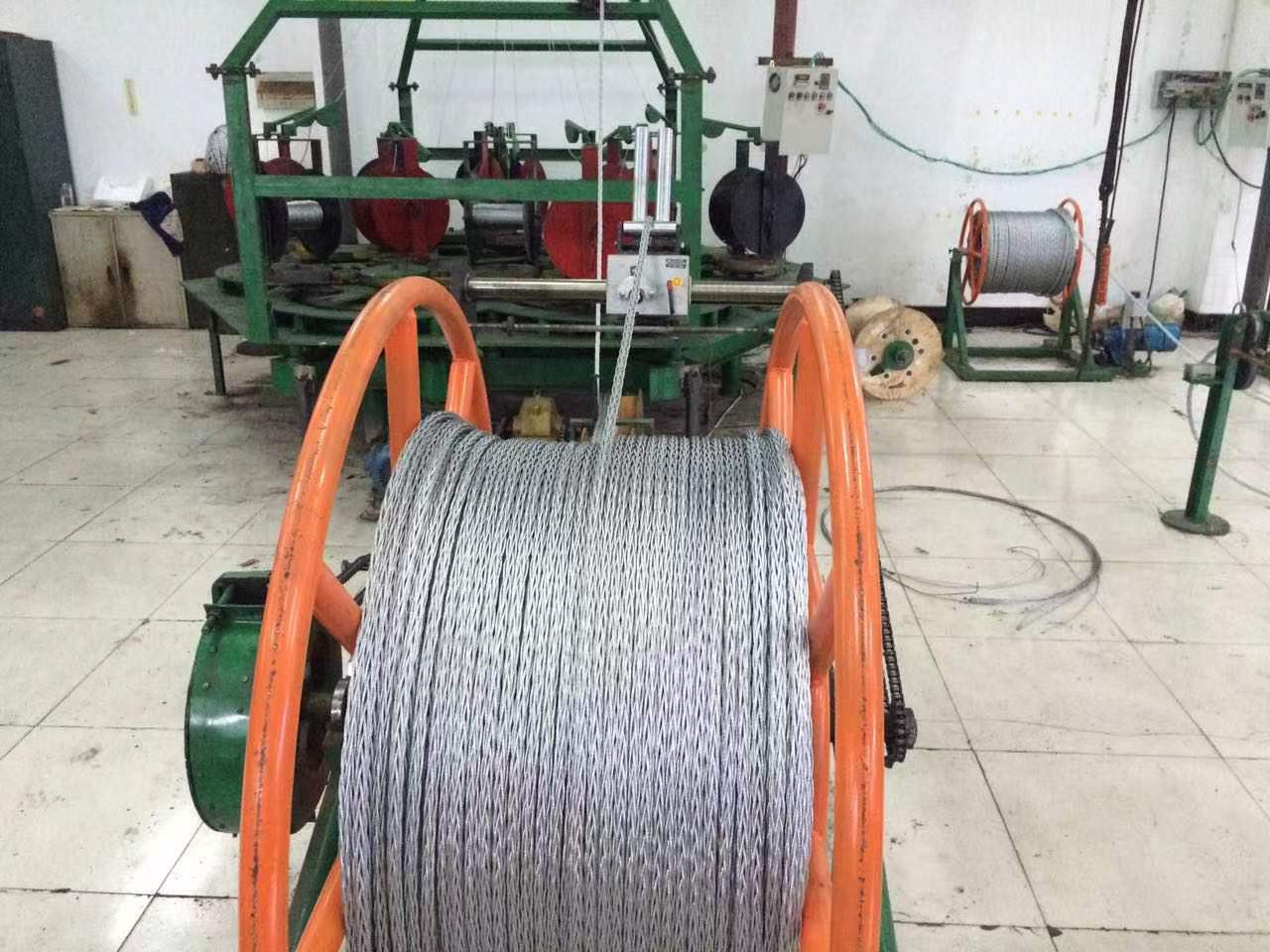

- It is specially braided from tensile strength steel wires. This kind of wire rope is pliable and tought, and is of anti-corrosiveness in addition.
Features:

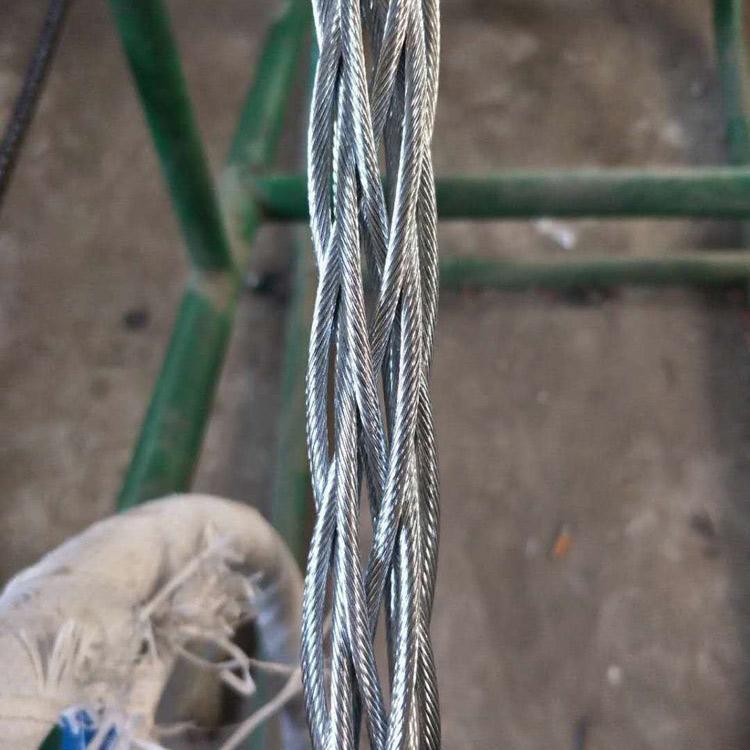

Square or hexagon is braided with four-strand, six-strand or nine-strand twisting with each other leftwards or rightwards. It is relative on the section. The twisting force on the section can be conteracted each other whether it receives a force or not. The moment of twisting is naught for the wire rope.
Product Category
Related products
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
Specification:
| Hexagonal Type Twelve-strand | |||||
| Model | Construction | Norminal Dia(mm) | Dia. of strand(mm) | Breaking Force(kN) | Weight (kg/100m) |
| HT9-12x19W | 12*19W | 9 | 2.0 | 55 | 26.6 |
| HT11-12x19W | 12*19W | 11 | 2.5 | 80 | 45.7 |
| HT13-12x19W | 12*19W | 13 | 3.0 | 120 | 57.9 |
| HT15-12x19W | 12*19W | 15 | 3.5 | 158 | 82.8 |
| HT18-12x19W | 12*19W | 18 | 4.0 | 210 | 103 |
| HT20-12x25Fi | 12*25Fi | 20 | 4.5 | 250 | 129 |
| HT22-12x25Fi | 12*25Fi | 22 | 4.8 | 320 | 147 |
| HT24-12x25Fi | 12*25Fi | 24 | 5.1 | 360 | 160 |
| HT26-12x25Fi | 12*25Fi | 26 | 5.5 | 420 | 193 |
| HT28-12x29Fi | 12*29Fi | 28 | 6.0 | 480 | 230 |
| HT30-12x29Fi | 12*29Fi | 30 | 6.5 | 540 | 272 |
| Hexagonal Type Eighteen-strand | |||||
| Model | Construction | Norminal Dia(mm) | Dia. of strand(mm) | Breaking Force(kN) | Weight (kg/100m) |
| HT20-18x19W | 18*19W | 20 | 4.0 | 300 | 159 |
| HT22-18x25Fi | 18*25Fi | 22 | 4.2 | 389 | 189 |
| HT24-18x25Fi | 18*25Fi | 24 | 4.8 | 440 | 216 |
| HT26-18x25Fi | 18*25Fi | 26 | 5.2 | 480 | 276 |
| HT28-18x29Fi | 18*29Fi | 28 | 5.4 | 540 | 301 |
| HT30-18x29Fi | 18*29Fi | 30 | 5.6 | 650 | 361 |
| HT32-18x29Fi | 18*29Fi | 32 | 6.0 | 780 | 423 |
