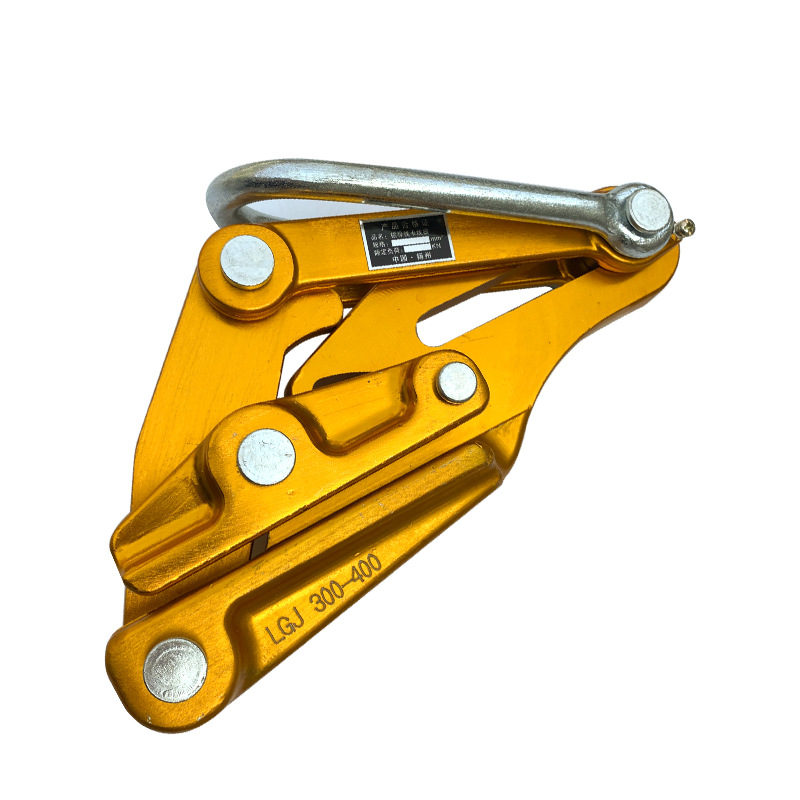

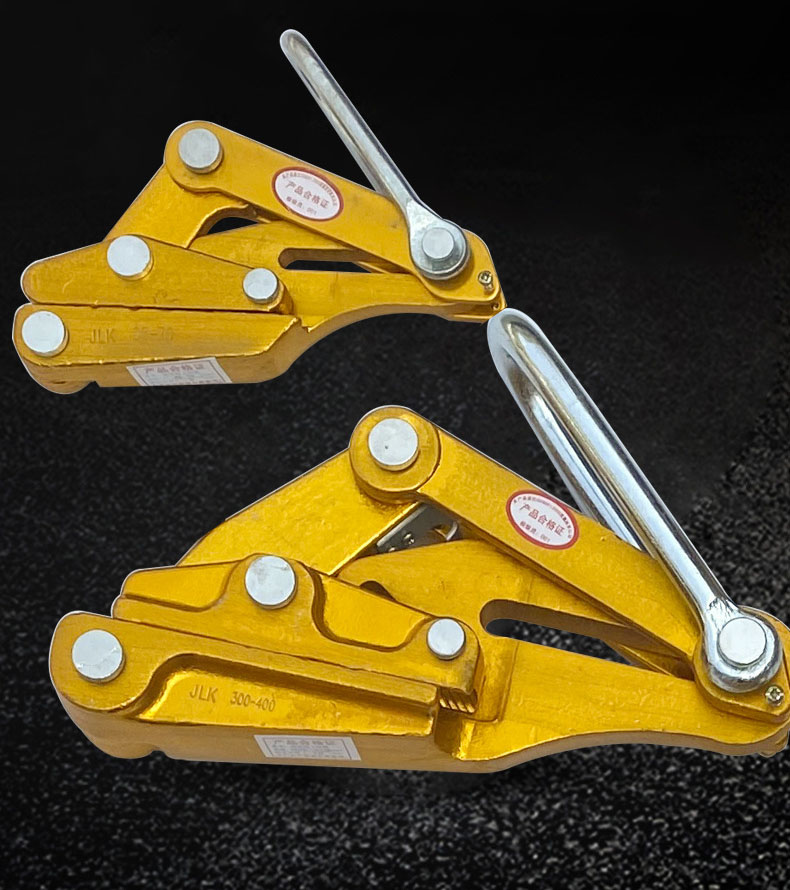

Aluminum Alloy Conductor Gripper
Key Features:

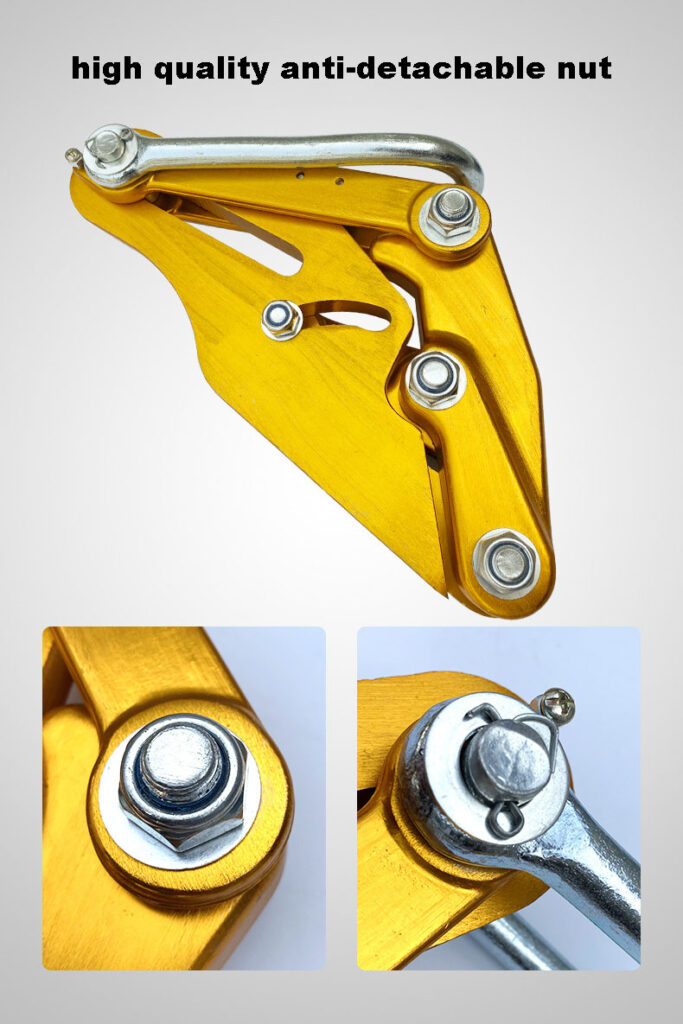

- High Strength & Lightweight: Forged from premium aluminum-magnesium alloy, ensuring durability while reducing tool weight for easy handling.

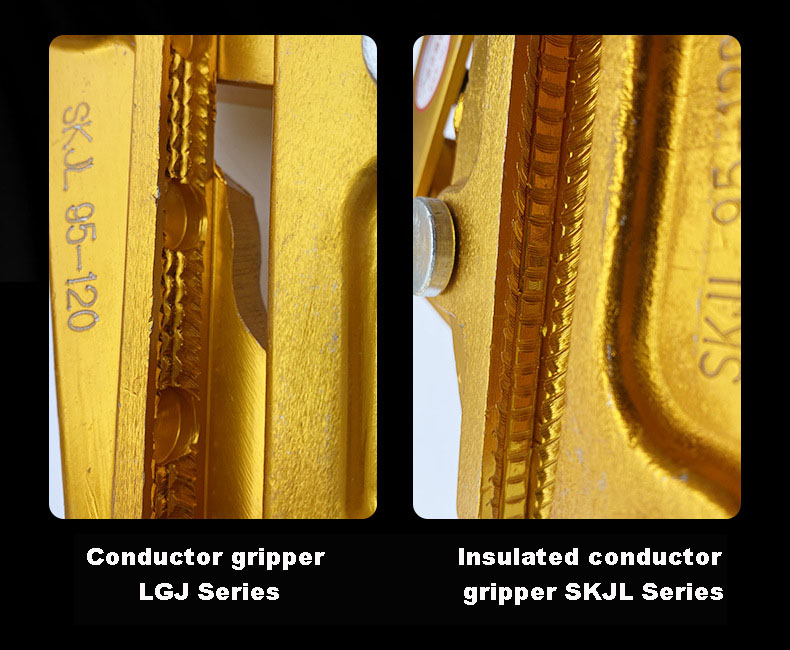

- Anti-Damage Design: Grooved or textured jaws prevent slippage and protect insulation layers, ideal for delicate insulated wires.

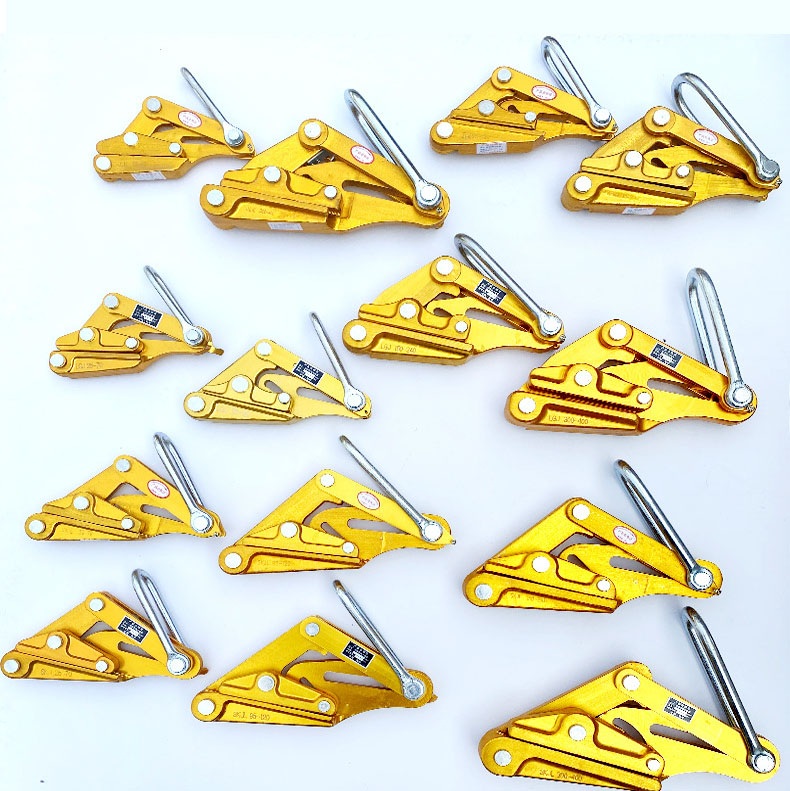

- Wide Compatibility: Adjustable models support cables from LGJ25-70 to LGJ800, with load capacities up to 70kN.

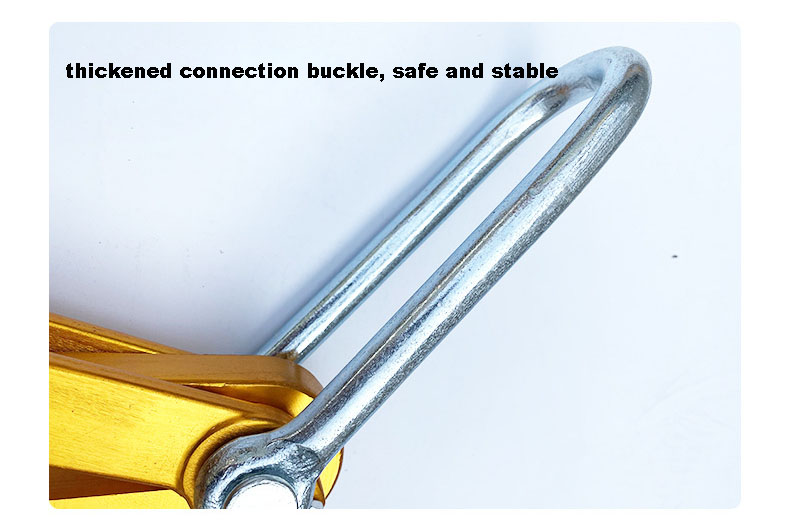

- Safety Assurance: Models with protective hooks undergo 3x load testing, ensuring secure grip without damaging cables.

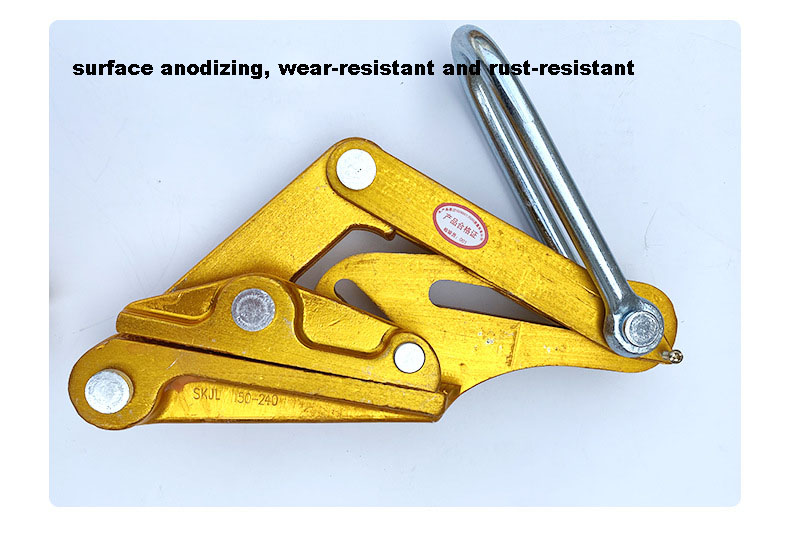

- Corrosion Resistance: Suitable for harsh environments like power grids and railways due to alloy’s anti-rust properties.

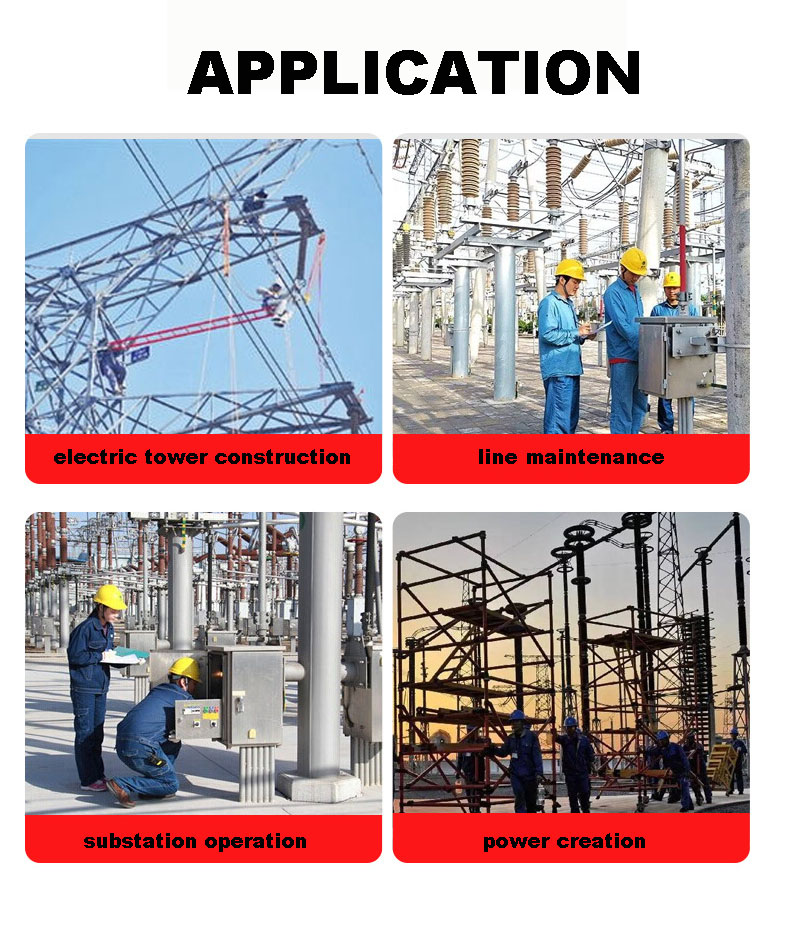

Applications:
- Power Grids: Adjusting sag, tensioning conductors, and maintaining overhead lines.
- Railway Electrification: Secure cable management in high-vibration rail systems.
- Insulated Wires: Safely tighten or adjust insulated conductors without compromising internal cores.
- Industrial Projects: Streamline steel cable installations and construction scaffolding
Product Category
Related products
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
Specification:
| Model | suitable rope mm² | Rated Capacity kN | Max Open mm | Net Weight kg | Remark |
| LGJ 25-70 | 25-70 | 10 | 14 | 1.05 |
Conductor use |
| LGJ 95-120 | 95-120 | 15 | 18 | 1.40 | |
| LGJ 150-240 | 150-240 | 25 | 24 | 2.90 | |
| LGJ 300-400 | 300-400 | 40 | 32 | 4.00 | |
| LGJ 500-630 | 500-630 | 60 | 37 | 6.70 | |
| LGJ 720-800 | 720-800 | 70 | 40 | 10.00 | |
| SKJL 25-70 | 25-70 | 10 | 14 | 1.10 |
Insulated Conductor use |
| SKJL 95-120 | 95-120 | 15 | 18 | 1.50 | |
| SKJL 150-240 | 150-240 | 25 | 24 | 3.20 | |
| SKJL 300-400 | 300-400 | 25 | 32 | 5.20 |
